Carb Final Connections

[DevilDog]

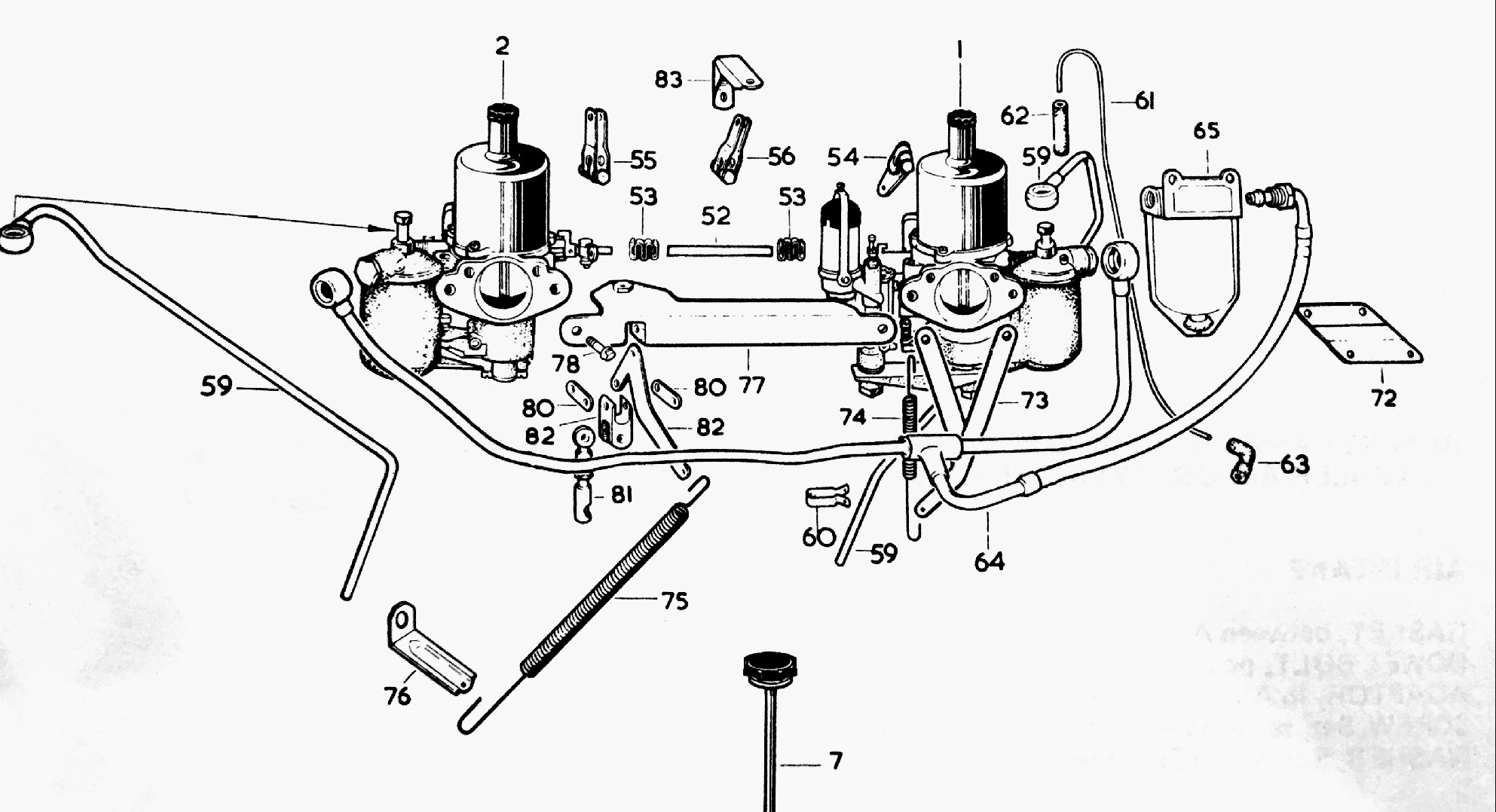

Please tell/show me how part number 73 and 74 are installed.
Thanks,

Carb and fuel connections.jpg (280.5 KiB) Viewed 3033 times

[NigelW]

Part #73 is the lower anchor for the throttle spring and is bolted to the lower studs of inlet manifold.

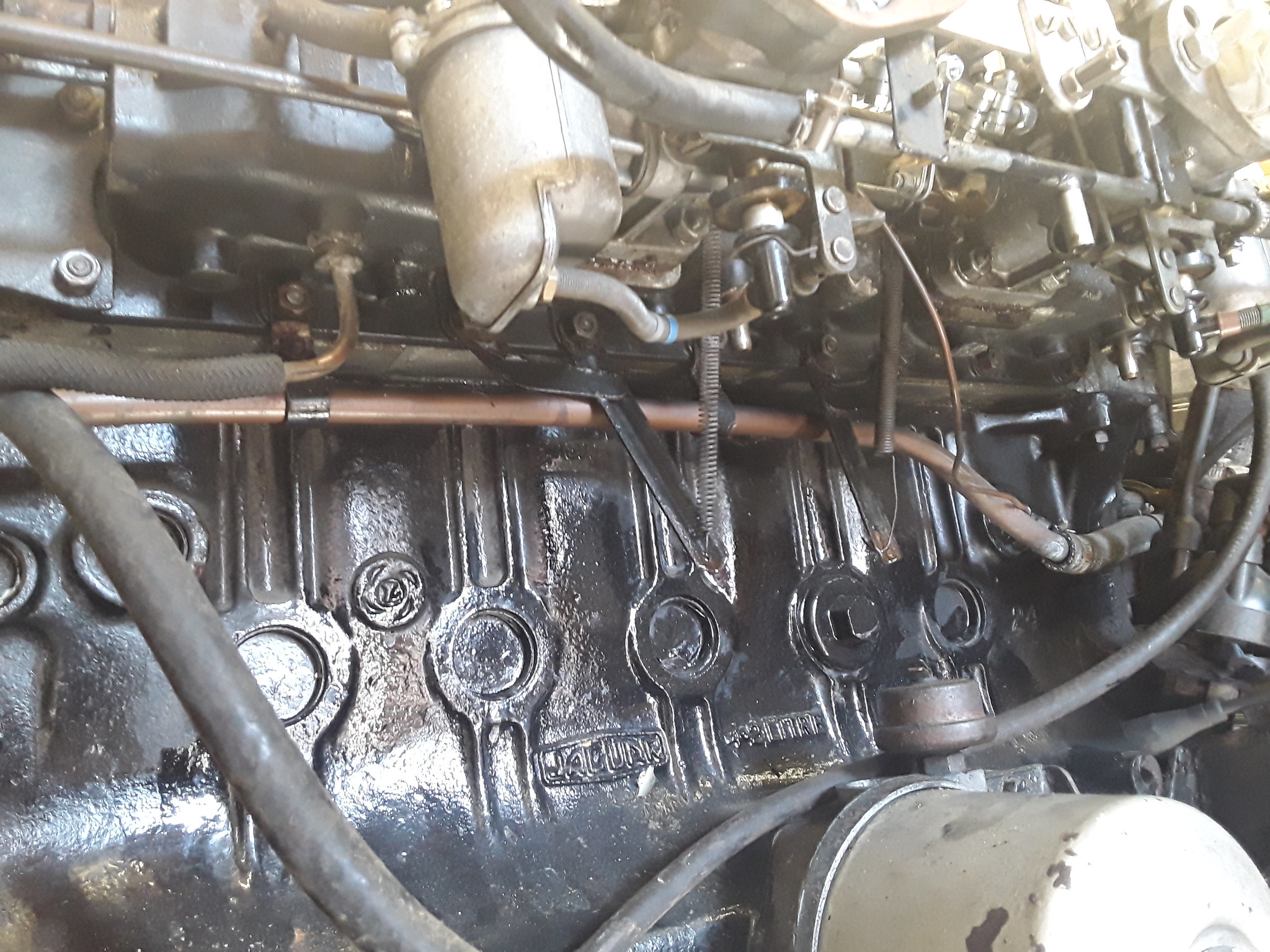

Photo from my XJ but same part and location.

[DevilDog]

Nigel,
The part 73 holes do not align with my inlet manifold, but they do align with the bolts holding the carb to the engine.
Thanks for the help,

[NigelW]

I'm now lost on this one as I havn't had the 1 3/4 carbs on mine for over thirty years and I'm only going by a distant memory, my car is as the XJ in the photo with HD8 carbs and fittings. Over to other members to help.

Have a look at part 54 as I think this is the anchor for the upper hook on the spring - same as the XJ.

[DevilDog]

Found it....have it mocked up. Just waiting for confirmation from others that it bolts to the rear of the front carb.
Thanks Nigel

[Glyn Ruck]

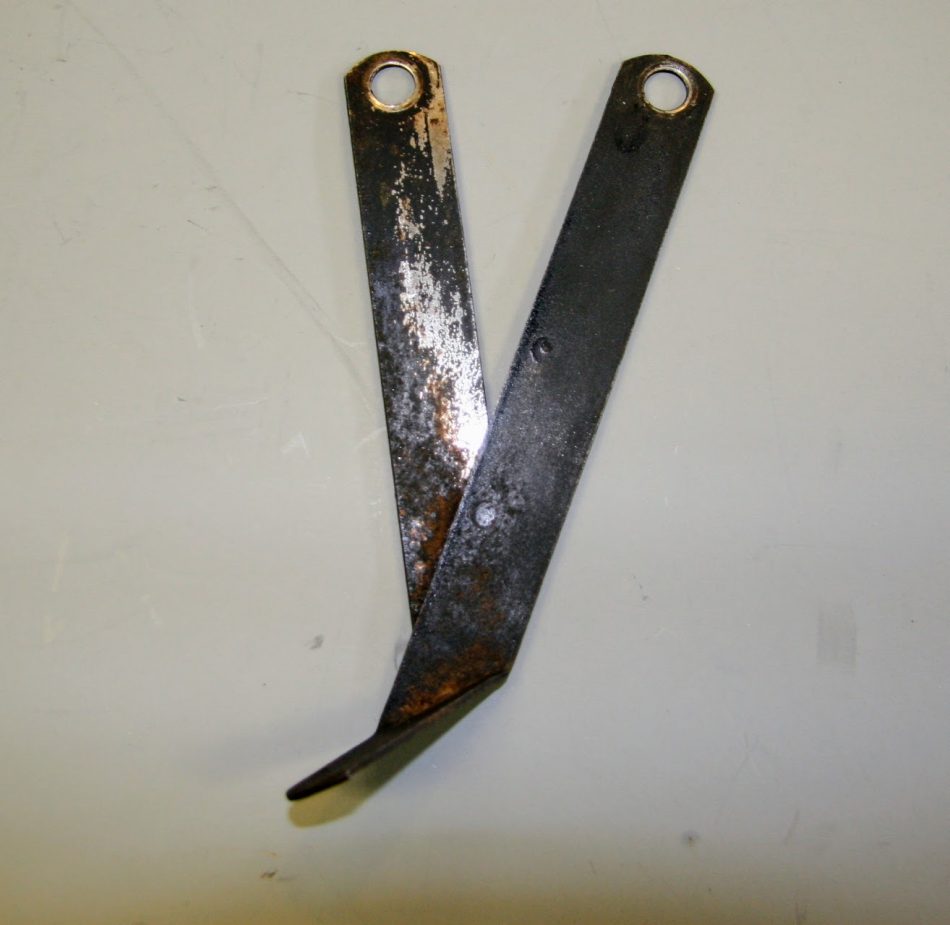

Joe ~ The front carb spring bracket that looks like this:

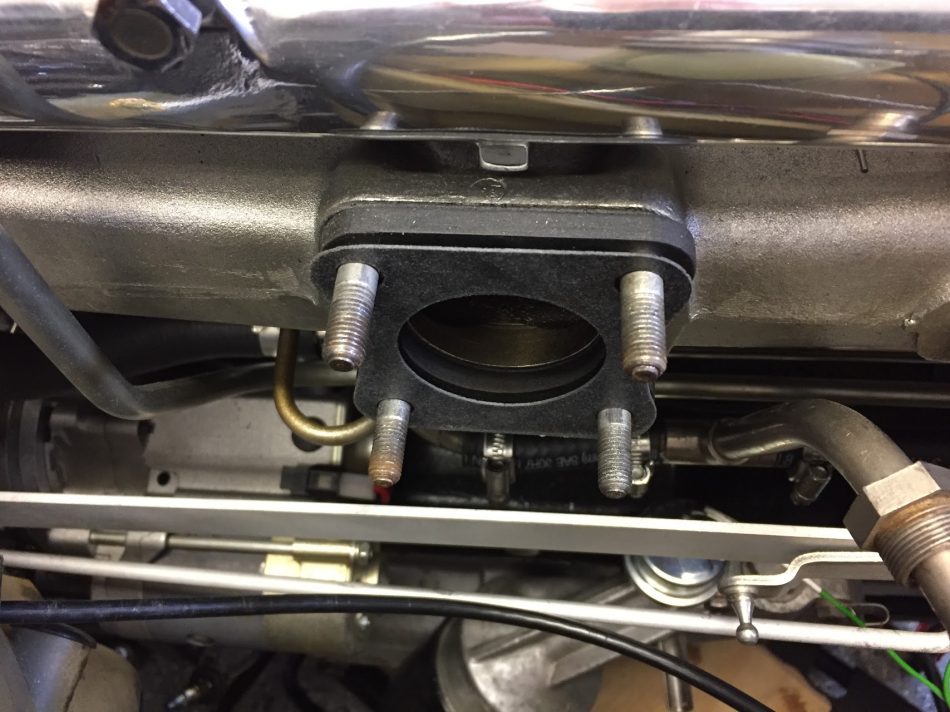

Attaches to the two lower front carb studs: (after the carb flange of course)


[DevilDog]

That is how I have it mocked up....thanks Glyn.
