Snap ~ That is exactly the lead I have got to attach to my plug. Only difference is mine has one red wire & one black. Same SAE connectors to charger fly lead that can only be plugged one way to ensure correct polarity is maintained.


[John Quilter]

This seems to be an unrelated thread to Bonnet Hinge Modification. Always good to start a new thread if on a different topic. But having said that the plug shown in the next post by Glyn Ruck could run into trouble since it is not set up to be polarity specific, ie it can be plugged in either way since its design use was for a trouble light that was not polarity specific like most modern accessories. I use a permanently mounted battery maintainer under the hood in the vicinity of the battery. I has two leads with eyelets that attach to the battery terminals, one black (-) and one red (+). The charger connects to a standard (at least for the USA) wall plug extension cord, orange wire. There is a green light on the device that shows it is charging and a red light when it senses the battery fully charged and shuts down. That can take up to 12+ hours since the device only puts out a amp or two. I plug mine in if I have not used the car in a period, and unplug when the red light appears. I have one in my 3.8S, XJ6, and Austin 1300. Since it is permanently wired to the battery terminals there is no chance of a polarity issue. Photo shows the one in my XJ6 (XJ40).

[Glyn Ruck]

No. Only plugs one way. 1 pin is thicker than the other. Can't be reverse plugged. Also smart charger auto detects polarity & won't charge incorrectly connected or do any damage ~ gives you a warning. Has LCD display that tells you exactly what is going on. Polarity confirm, 6 or 12V, Volts & Amps, Battery type (SLA, Lion) etc. Rate of charge, Winter charge, Car or Bike etc. Which of 8 auto modes the charger is in for charge & maintenance.

Accessory plug.jpg (326.3 KiB) Viewed 2945 times

[cass3958]

I still have my Accessory port on the inner wing fully intact with the plug but it is not connect to the wiring as I removed the voltage regulator last year when I converted to Negative earth. I keep meaning to run a couple of wires to it but will never need it it is just for show. I might also reposition the VR in place with some dummy wires but again just for show.

[Glyn Ruck]

You can always wire up the accessory port for negative earth should you ever wish to use it.

[John Quilter]

No. Only plugs one way. 1 pin is thicker than the other. Can't be reverse plugged. Also smart charger auto detects polarity & won't charge incorrectly connected or do any damage ~ gives you a warning. Has LCD display that tells you exactly what is going on. Polarity confirm, 6 or 12V, Volts & Amps, Battery type (SLA, Lion) etc. Rate of charge, Winter charge, Car or Bike etc. Which of 8 auto modes the charger is in for charge & maintenance.

Well, I learned something new. I have one of these almost identical plugs that I use with my 1951 MGTD and on this one the prongs are exactly the same size which allows you to plug it in either way to the fascia located female plugs. Apparently later versions were made with two sizes of prongs.

Accessory plug.jpg

[Glyn Ruck]

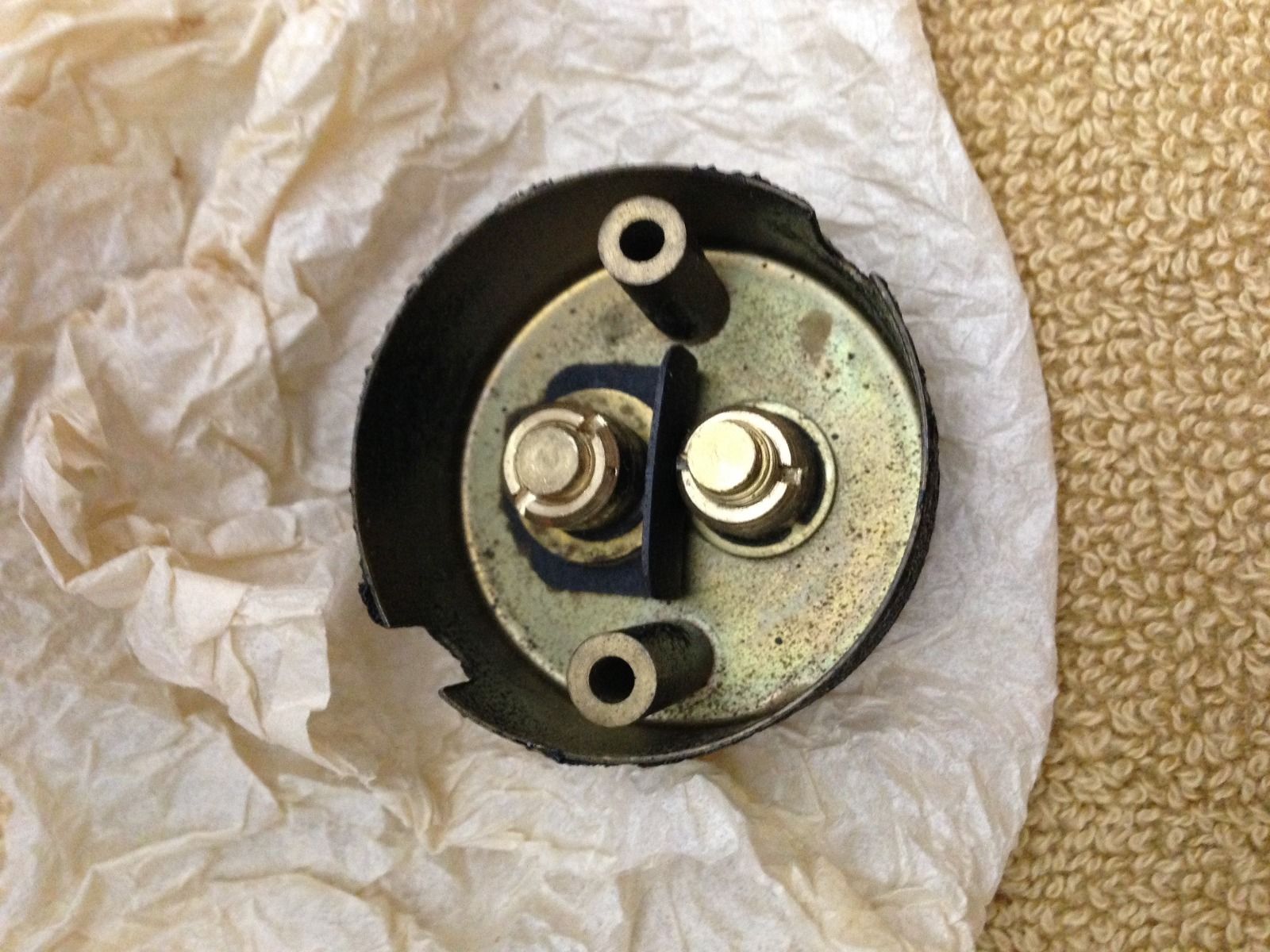

Yes ~ I'm talking about the Lucas units Jaguar use (38604). They have one large pin & one small pin. Can't be reverse plugged. I'm not talking about Land Rovers, Healeys, MG's etc. Many of them had same size pin for both Pos & Neg.

Accessory plug1.jpg (302.02 KiB) Viewed 2898 times

Accessory plug2.jpg (243.75 KiB) Viewed 2898 times

Accessory plug3.jpg (248.64 KiB) Viewed 2898 times

Inspection lamp socket.jpg (144.79 KiB) Viewed 2898 times


[Glyn Ruck]

This is the non Jaguar unit used by some others. Both pins same thickness.

Accessory socket non Jaguar.png (198.79 KiB) Viewed 2895 times

[cass3958]

I know someone mentioned it earlier in the post but can our moderator move some of this post relating to the Auxiliary power point to a new topic under Electrical please. It will be easier to search for at a later date. Thank you.

[John Quilter]

Yes, good idea, hope it can be done.
