Body Fittings
Body Fittings
Getting all the rivets, clamps, fasteners together for the chrome. Ordered most from SNG. However, they do not carry the parts annotated with the arrow in the below photo including the rubber buffer 2179. Anyone know where I can get these? I may have the screws in a bag somewhere. Have to look.
The fun part will be reattaching everything. Any suggestions out there???????????????????????
The fun part will be reattaching everything. Any suggestions out there???????????????????????
Joe
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
- David Reilly
- Posts: 184
- Joined: Fri Oct 27, 2017 8:02 pm
- Location: Wagener, SC USA
- Contact:
Re: Body Fittings
This topic is covered in Newsletter Vol. 7, No. 5 in the archives.
To decipher fastener part numbers and more readily find the exact replacement when needed, xkebooks.com published “Jaguar Fastener Guide”. The guide was available at: http://www.xke-lovers.com/memberfiles/fasteners.pdf
I've had trouble getting to that site lately and the guide is now at
http://online.fliphtml5.com/lupq/ekxr/
and
http://fliphtml5.com/lupq/ekxr/basic
Cheers
David
To decipher fastener part numbers and more readily find the exact replacement when needed, xkebooks.com published “Jaguar Fastener Guide”. The guide was available at: http://www.xke-lovers.com/memberfiles/fasteners.pdf
I've had trouble getting to that site lately and the guide is now at
http://online.fliphtml5.com/lupq/ekxr/
and
http://fliphtml5.com/lupq/ekxr/basic
Cheers
David
- Glyn Ruck
- Posts: 1619
- Joined: Sun Oct 07, 2018 2:14 pm
- Location: Llandudno, Cape Town, South Africa
- Contact:
Re: Body Fittings
DD/Joe ~ The rubber wiper stripping 2179 was available as a single extrusion that required to be cut to length from Barratts a mere 6 months or so ago & supplied to me. (rubber wiper outside on window ~ whisker strip with clips inside) Their new website is a disaster again as it is every time they change it. Mr Barratt had his web developer phone me when I pointed out that the site does not list things I know they have in stock the previous time they changed. The same applies now.
Get in touch with them and make someone check their actual stock. I'll bet they still have it (maybe under another number).
Regarding the attachment self tappers. I had rusted original samples. I had no trouble getting matching items in Stainless Steel from a local supplier. The same goes for all the wood attachment screws under the rubbers in the doorjams. I got all in SS locally without issue.
Once you have the strips rechromed & need to fit the rubber wiper I will give you some tips to stop shrinkage once pulled in & fitted. Also use Tectyl or similar everywhere that a rivet, self tapper or whatever damages the paint to prevent rusting.
Look after strips 32, 33, 35 & 36. that the rubber wiper pulls into. They are becoming as rare as rocking horse dung in good condition. The Mk2 part is no substitute.
Get in touch with them and make someone check their actual stock. I'll bet they still have it (maybe under another number).
Regarding the attachment self tappers. I had rusted original samples. I had no trouble getting matching items in Stainless Steel from a local supplier. The same goes for all the wood attachment screws under the rubbers in the doorjams. I got all in SS locally without issue.
Once you have the strips rechromed & need to fit the rubber wiper I will give you some tips to stop shrinkage once pulled in & fitted. Also use Tectyl or similar everywhere that a rivet, self tapper or whatever damages the paint to prevent rusting.
Look after strips 32, 33, 35 & 36. that the rubber wiper pulls into. They are becoming as rare as rocking horse dung in good condition. The Mk2 part is no substitute.
Last edited by Glyn Ruck on Sat Dec 15, 2018 4:22 pm, edited 1 time in total.
1965 Jaguar 3.8 S Type, Sync4, OD, PAS, BRG/Biscuit on chrome wires.
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
Re: Body Fittings
Glyn,
Do you have a photo of Part 2179????
Thanks for all of your info.
David,
Thanks for the response. Printed off the Fastener Guide.
Do you have a photo of Part 2179????
Thanks for all of your info.
David,
Thanks for the response. Printed off the Fastener Guide.
Joe
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
- Glyn Ruck
- Posts: 1619
- Joined: Sun Oct 07, 2018 2:14 pm
- Location: Llandudno, Cape Town, South Africa
- Contact:
Re: Body Fittings
I don't but will see if I can find an offcut over the weekend & take a pic. My restorer has just brought down the leftovers from Johannesburg. Don't know if we saved a piece.
Last edited by Glyn Ruck on Sun Dec 16, 2018 5:45 pm, edited 2 times in total.
1965 Jaguar 3.8 S Type, Sync4, OD, PAS, BRG/Biscuit on chrome wires.
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
Re: Body Fittings
In that same photo above, I cannot find BD.26706/4 Retainer/Rivet Quantity: 8.
I found BD26706/1 and /2, but no /4. Searching everywhere with no success.
Glyn,
Hopefully, you can get me a better photo....you help is appreciated.
David....the guide helped me find the setscrews at home depot. Thanks...
I found BD26706/1 and /2, but no /4. Searching everywhere with no success.
Glyn,
Hopefully, you can get me a better photo....you help is appreciated.
David....the guide helped me find the setscrews at home depot. Thanks...
Joe
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
- Glyn Ruck
- Posts: 1619
- Joined: Sun Oct 07, 2018 2:14 pm
- Location: Llandudno, Cape Town, South Africa
- Contact:
Re: Body Fittings
No joy finding off-cut of rubber wiper strip for shoulder beading yet. Will keep looking.

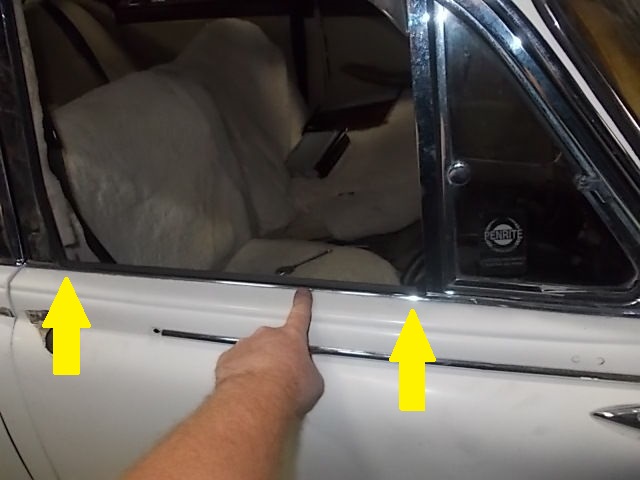

Picture I modded from internet showing beading with rubber wiper between yellow arrows.
BD.26706/4 are just pop rivets. Make sure you have a selection in different sizes. BTW Jaguar also used self tappers in some locations where pop rivets are shown in the parts manual & vice versa. I just did as my original car was (it had never been apart) or where things tallied with my donor cars.
All my pictures just cut off what we want to see because they were taken to show something else.
Picture I modded from internet showing beading with rubber wiper between yellow arrows.
BD.26706/4 are just pop rivets. Make sure you have a selection in different sizes. BTW Jaguar also used self tappers in some locations where pop rivets are shown in the parts manual & vice versa. I just did as my original car was (it had never been apart) or where things tallied with my donor cars.
All my pictures just cut off what we want to see because they were taken to show something else.
1965 Jaguar 3.8 S Type, Sync4, OD, PAS, BRG/Biscuit on chrome wires.
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
Re: Body Fittings
Great....thanks so much. I will send the first pic to SNG.
Joe
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
- Glyn Ruck
- Posts: 1619
- Joined: Sun Oct 07, 2018 2:14 pm
- Location: Llandudno, Cape Town, South Africa
- Contact:
Re: Body Fittings

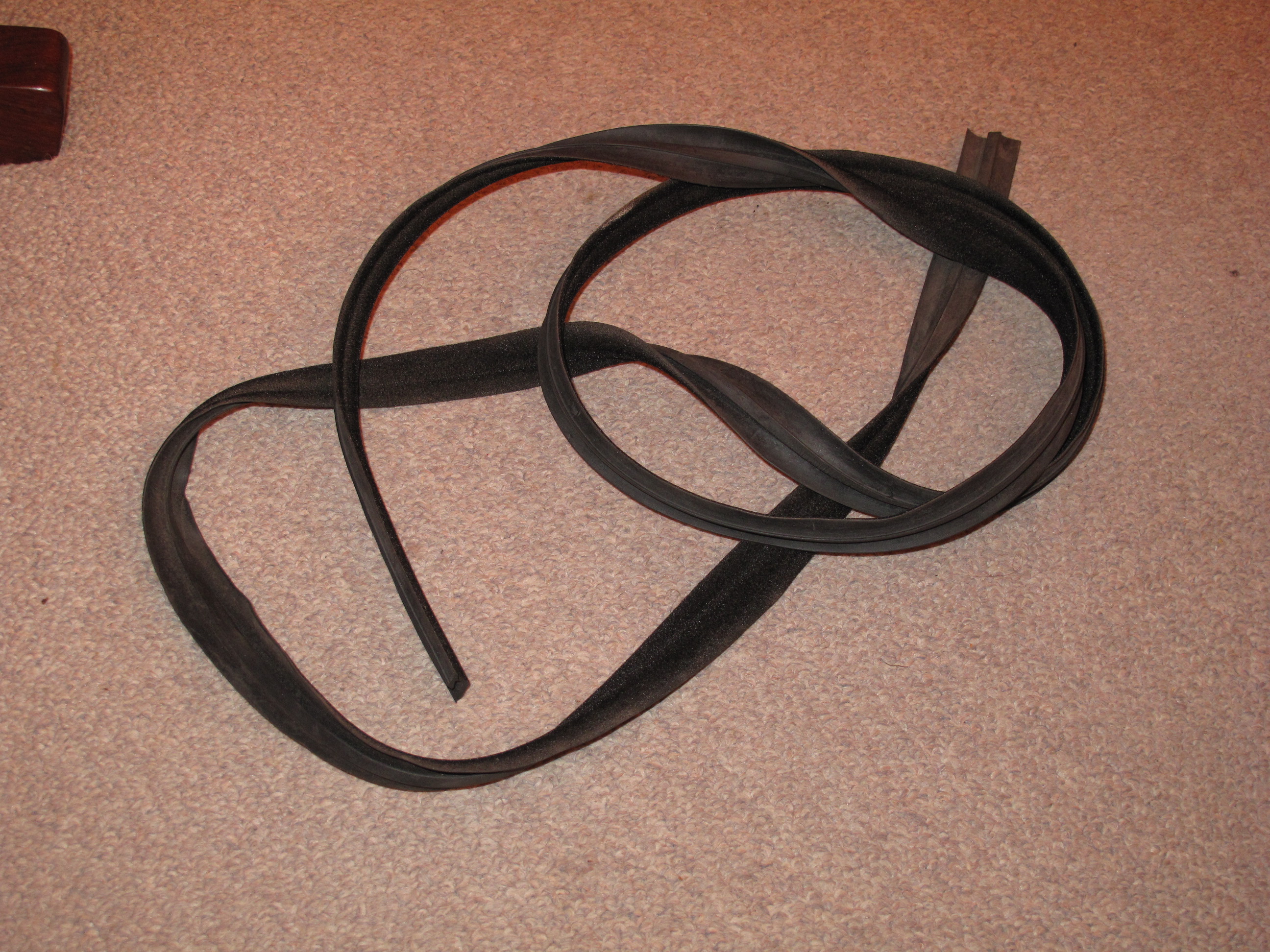

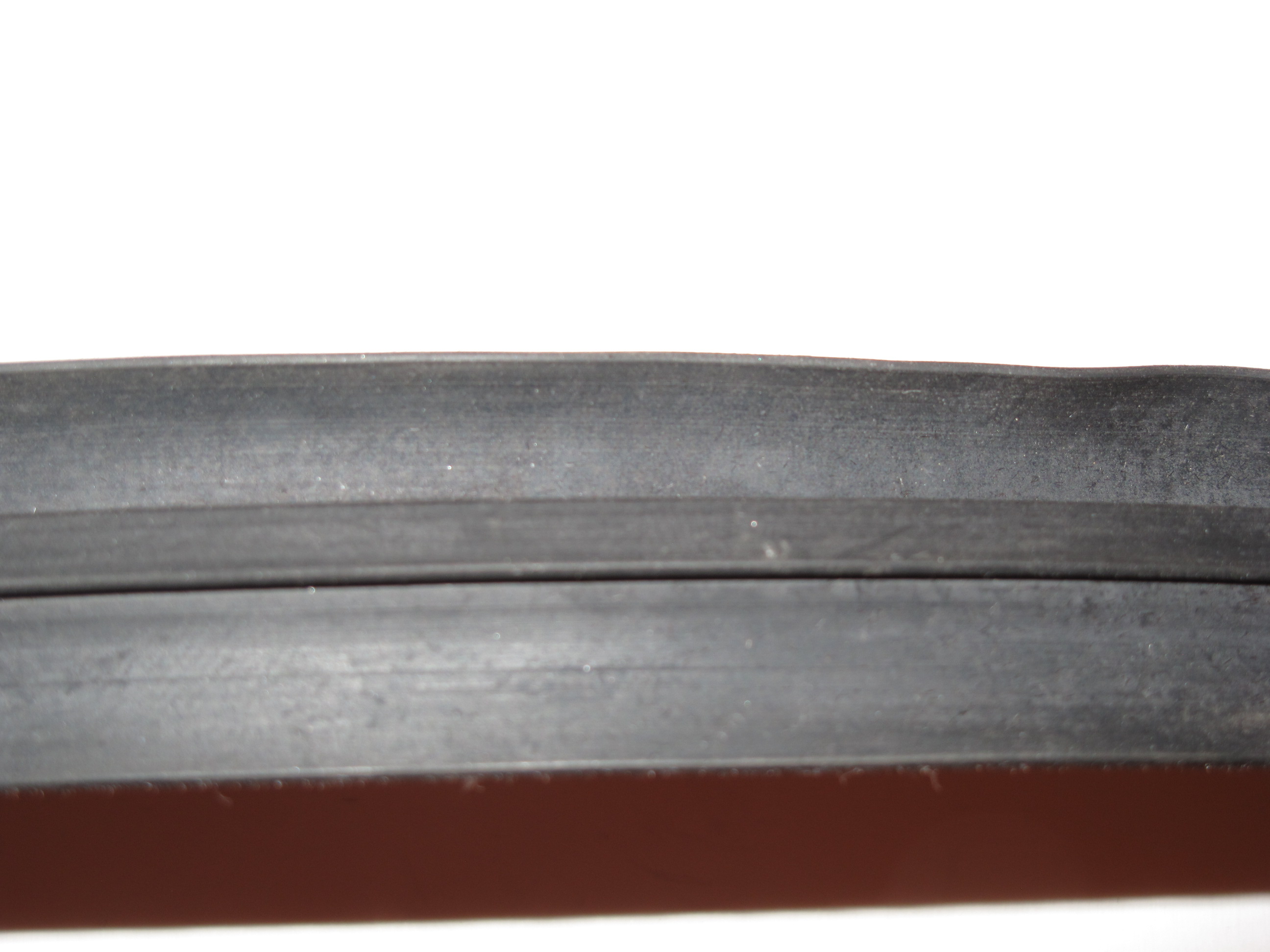

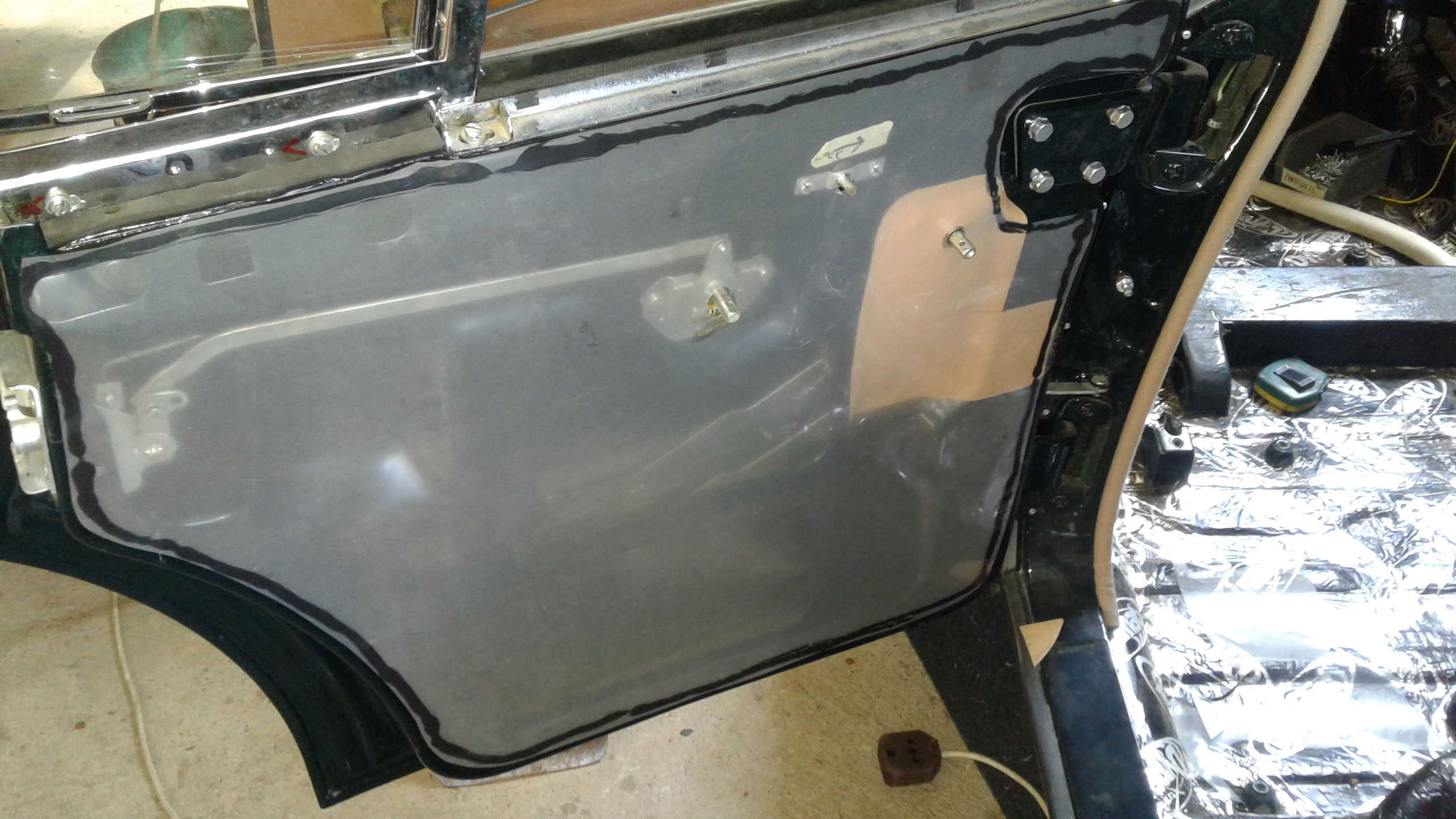

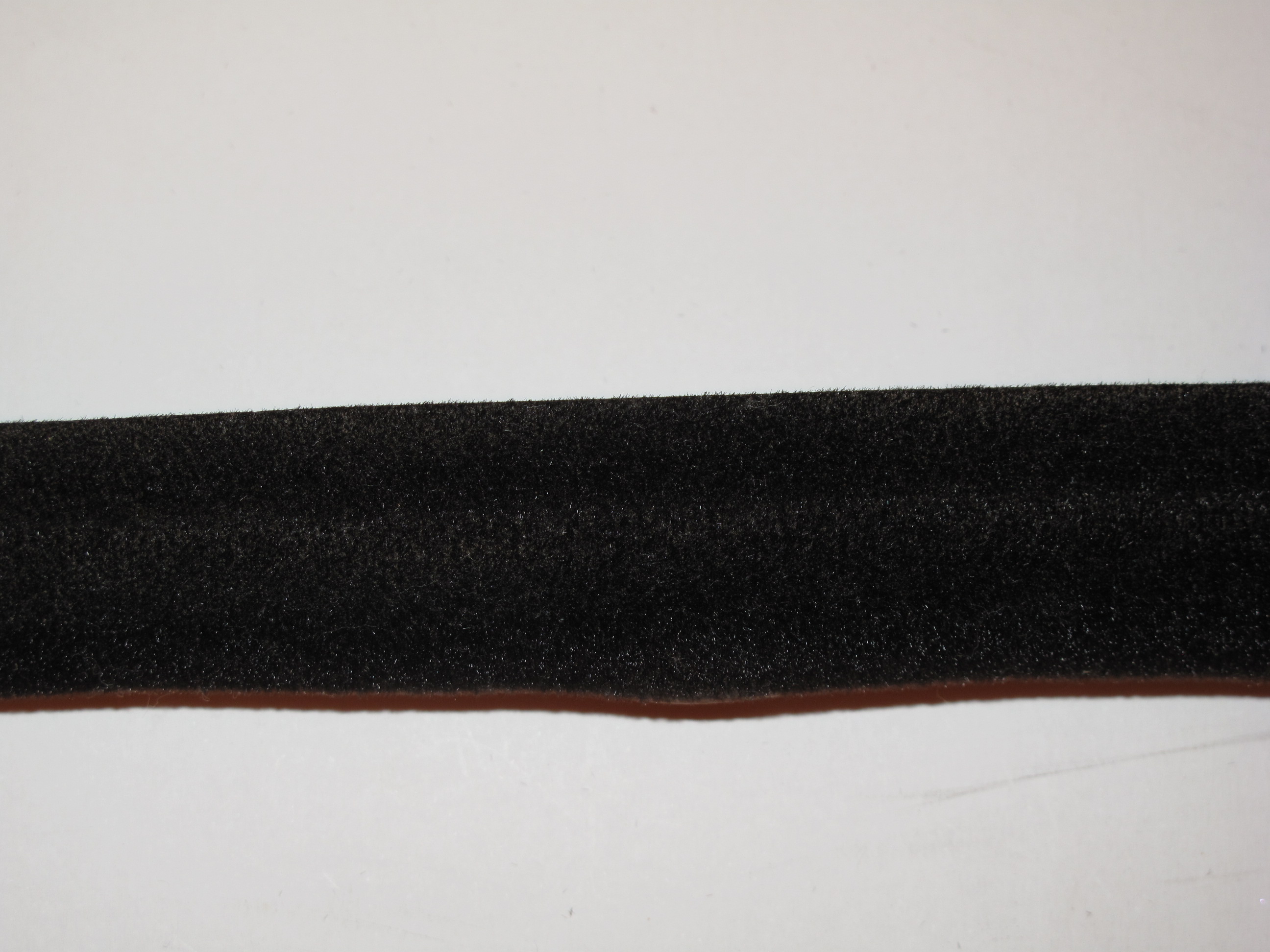

Huh! you are in luck. Found a piece & deleted my poor representation above. Hope this will help Barratts identify.
Profile:
Rubber side to beading
Velvet Side to glass
Profile:
Rubber side to beading
Velvet Side to glass
Last edited by Glyn Ruck on Sun Dec 16, 2018 6:11 pm, edited 1 time in total.
1965 Jaguar 3.8 S Type, Sync4, OD, PAS, BRG/Biscuit on chrome wires.
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
http://www.jagstyperegister.com/forum_n ... ?f=3&t=152
A1B56966DN
Re: Body Fittings
Perfect....email sent to SNG.
Thanks so much,
Thanks so much,
Joe
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
Captain, USMC (Retired)
1965 Jaguar 3.8 Manual w/OD & RHD "Miss Kitty" 1B54554DN
2003 Dodge Durango SLT
2001 Dodge V10 2500
2017 Load N Go 24' car hauler
