Body Fittings

[DevilDog]

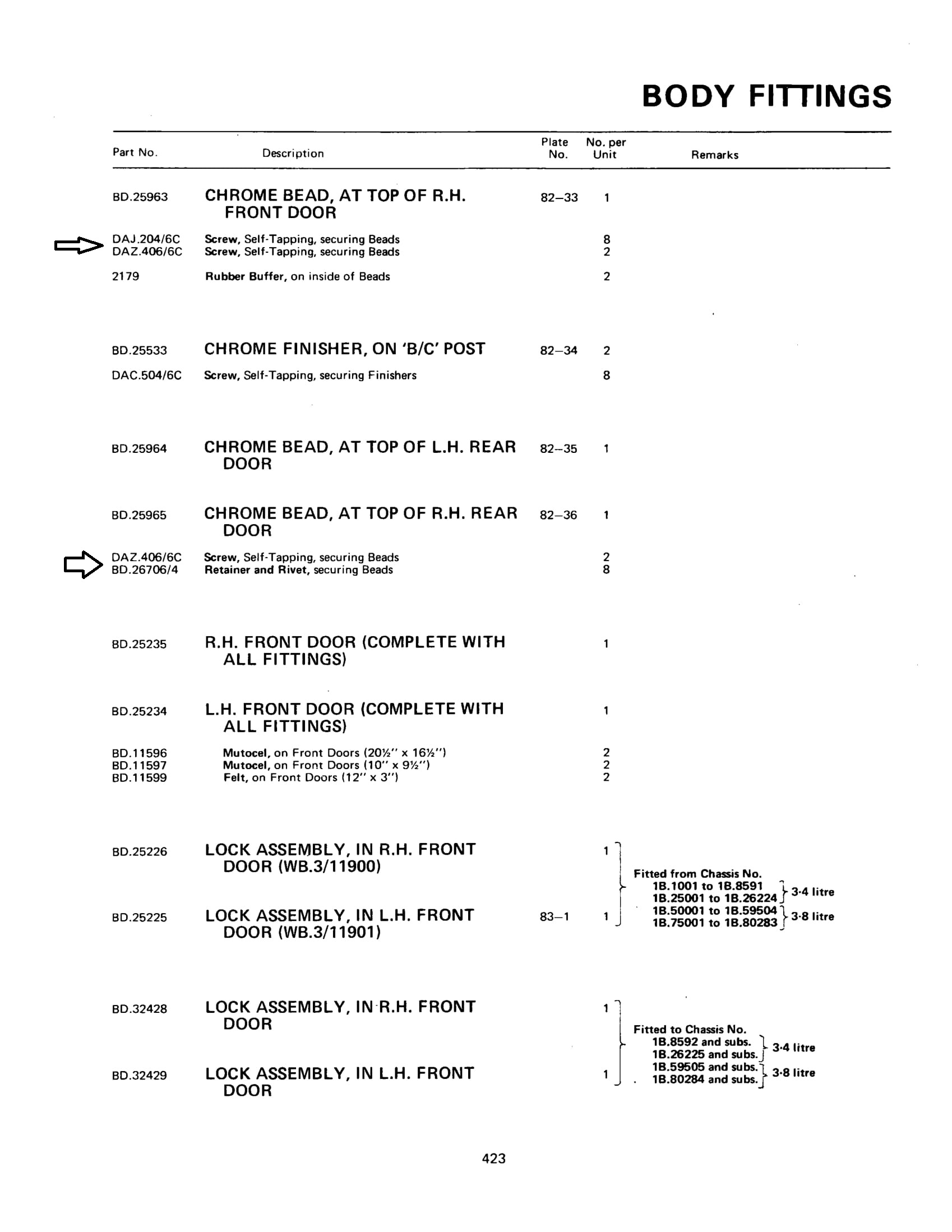

Getting all the rivets, clamps, fasteners together for the chrome. Ordered most from SNG. However, they do not carry the parts annotated with the arrow in the below photo including the rubber buffer 2179. Anyone know where I can get these? I may have the screws in a bag somewhere. Have to look.

The fun part will be reattaching everything. Any suggestions out there???????????????????????


[David Reilly]

This topic is covered in Newsletter Vol. 7, No. 5 in the archives.
To decipher fastener part numbers and more readily find the exact replacement when needed, xkebooks.com published “Jaguar Fastener Guide”. The guide was available at: http://www.xke-lovers.com/memberfiles/fasteners.pdf
I've had trouble getting to that site lately and the guide is now at
http://online.fliphtml5.com/lupq/ekxr/
and
http://fliphtml5.com/lupq/ekxr/basic
Cheers
David

[Glyn Ruck]

DD/Joe ~ The rubber wiper stripping 2179 was available as a single extrusion that required to be cut to length from Barratts a mere 6 months or so ago & supplied to me. (rubber wiper outside on window ~ whisker strip with clips inside) Their new website is a disaster again as it is every time they change it. Mr Barratt had his web developer phone me when I pointed out that the site does not list things I know they have in stock the previous time they changed. The same applies now.

Get in touch with them and make someone check their actual stock. I'll bet they still have it (maybe under another number).

Regarding the attachment self tappers. I had rusted original samples. I had no trouble getting matching items in Stainless Steel from a local supplier. The same goes for all the wood attachment screws under the rubbers in the doorjams. I got all in SS locally without issue.

Once you have the strips rechromed & need to fit the rubber wiper I will give you some tips to stop shrinkage once pulled in & fitted. Also use Tectyl or similar everywhere that a rivet, self tapper or whatever damages the paint to prevent rusting.

Look after strips 32, 33, 35 & 36. that the rubber wiper pulls into. They are becoming as rare as rocking horse dung in good condition. The Mk2 part is no substitute.

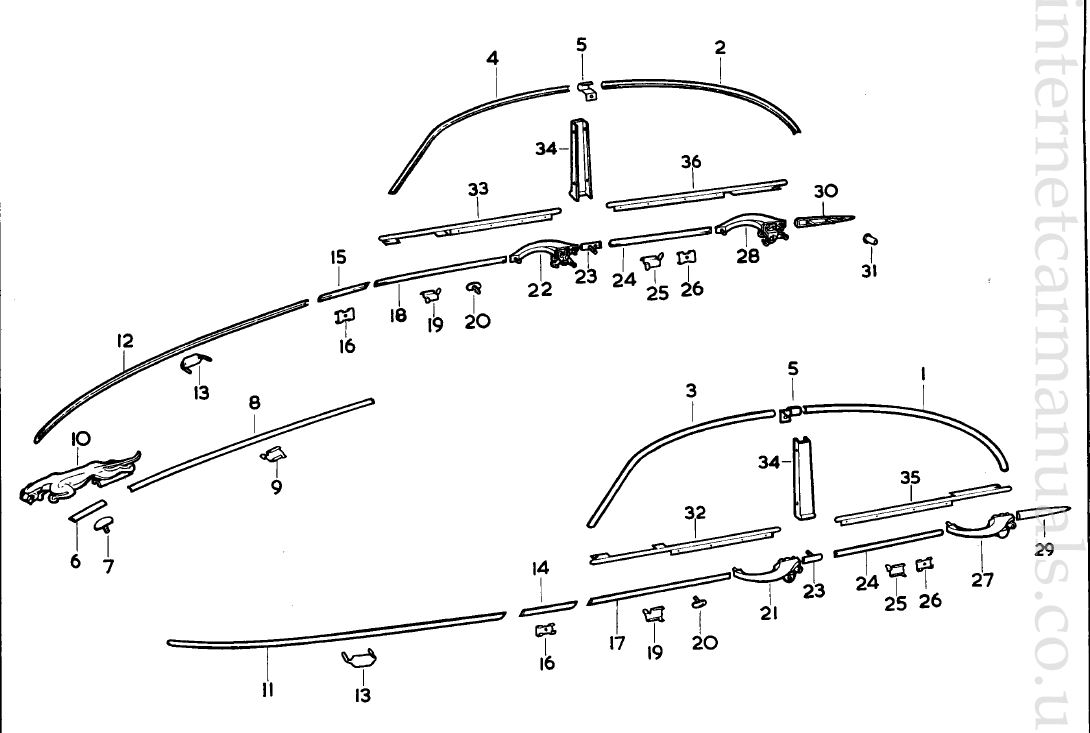

Body chrome.JPG (81.45 KiB) Viewed 2917 times

[DevilDog]

Glyn,
Do you have a photo of Part 2179????
Thanks for all of your info.

David,
Thanks for the response. Printed off the Fastener Guide.

[Glyn Ruck]

Glyn,
Do you have a photo of Part 2179????
Thanks for all of your info.

I don't but will see if I can find an offcut over the weekend & take a pic. My restorer has just brought down the leftovers from Johannesburg. Don't know if we saved a piece.

[DevilDog]

In that same photo above, I cannot find BD.26706/4 Retainer/Rivet Quantity: 8.

I found BD26706/1 and /2, but no /4. Searching everywhere with no success.

Glyn,
Hopefully, you can get me a better photo....you help is appreciated.

David....the guide helped me find the setscrews at home depot. Thanks...

[Glyn Ruck]

No joy finding off-cut of rubber wiper strip for shoulder beading yet. Will keep looking.

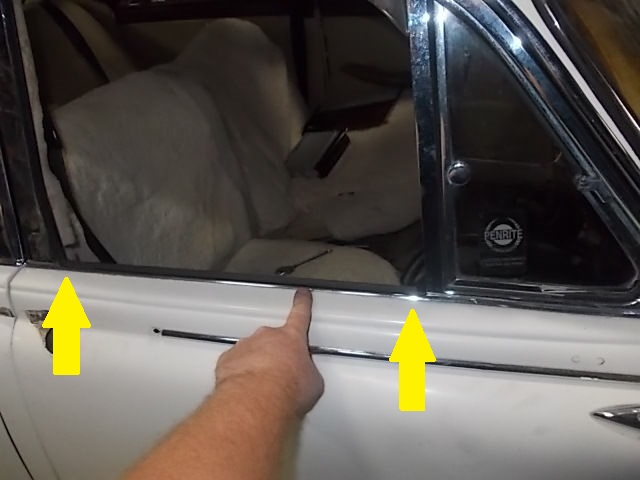

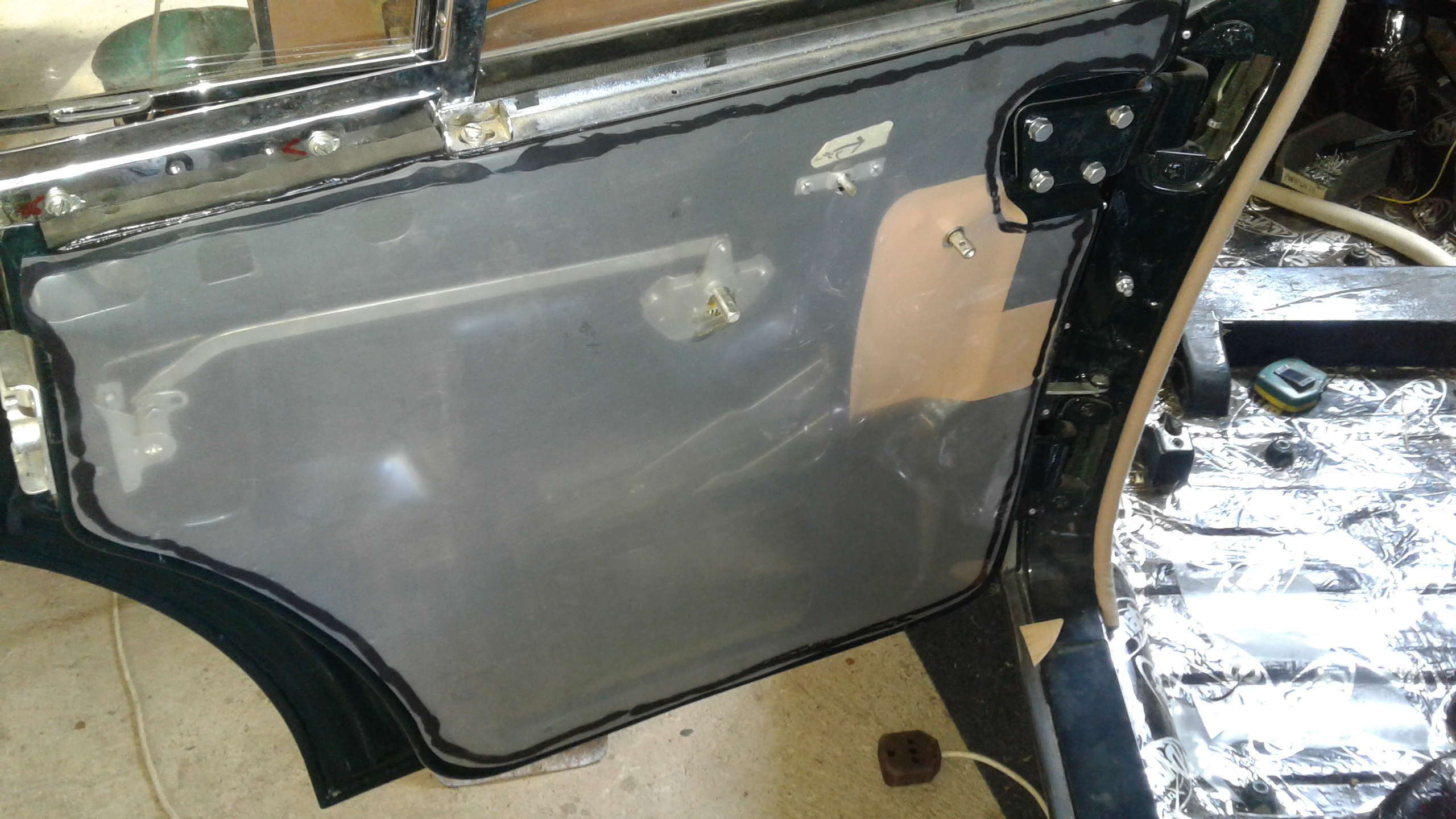

Picture I modded from internet showing beading with rubber wiper between yellow arrows.

door shoulder moulding - Copy.JPG (54.41 KiB) Viewed 2876 times

BD.26706/4 are just pop rivets. Make sure you have a selection in different sizes. BTW Jaguar also used self tappers in some locations where pop rivets are shown in the parts manual & vice versa. I just did as my original car was (it had never been apart) or where things tallied with my donor cars.

All my pictures just cut off what we want to see because they were taken to show something else.



[DevilDog]

Great....thanks so much. I will send the first pic to SNG.

[Glyn Ruck]

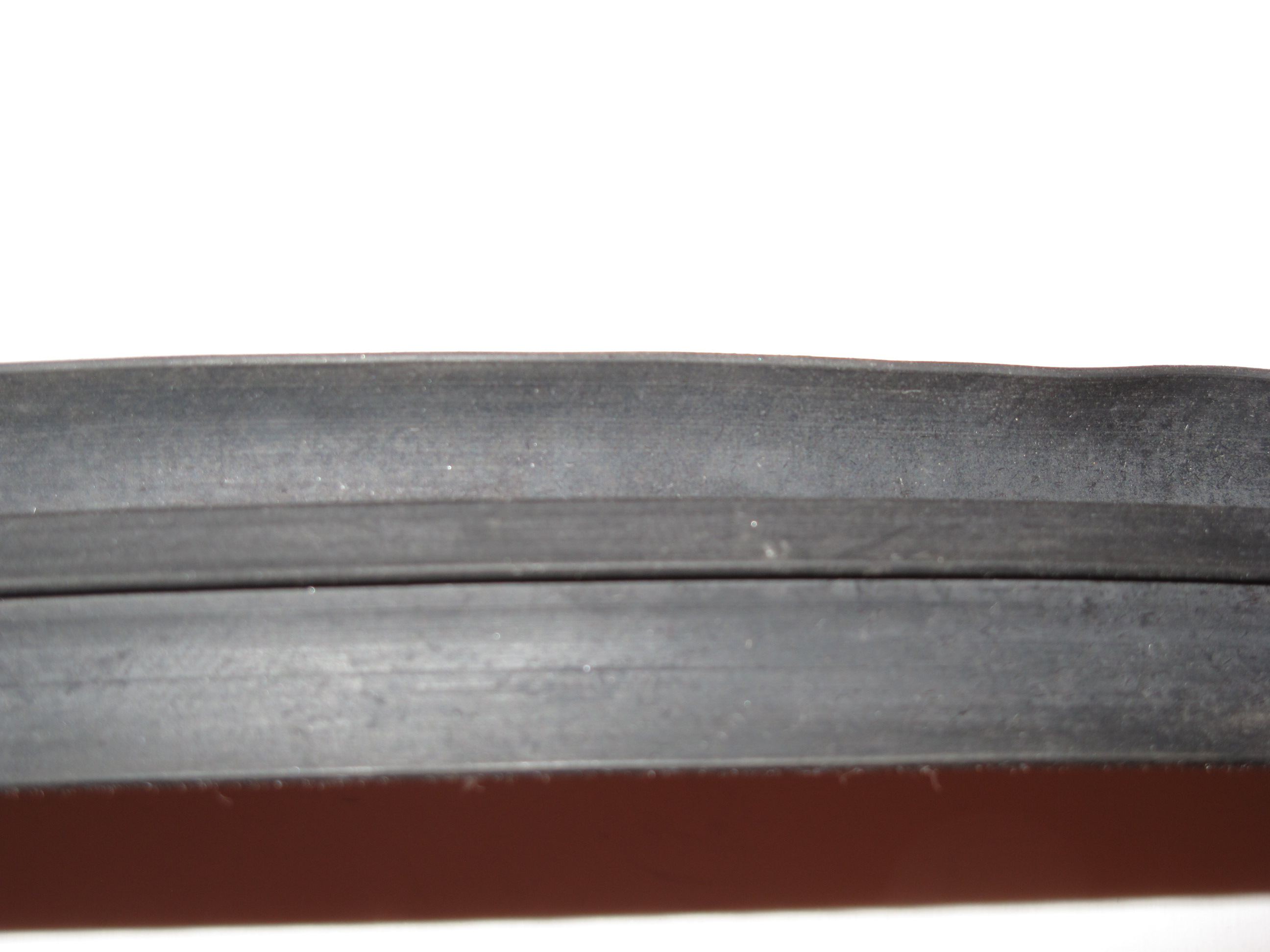

Huh! you are in luck. Found a piece & deleted my poor representation above. Hope this will help Barratts identify.

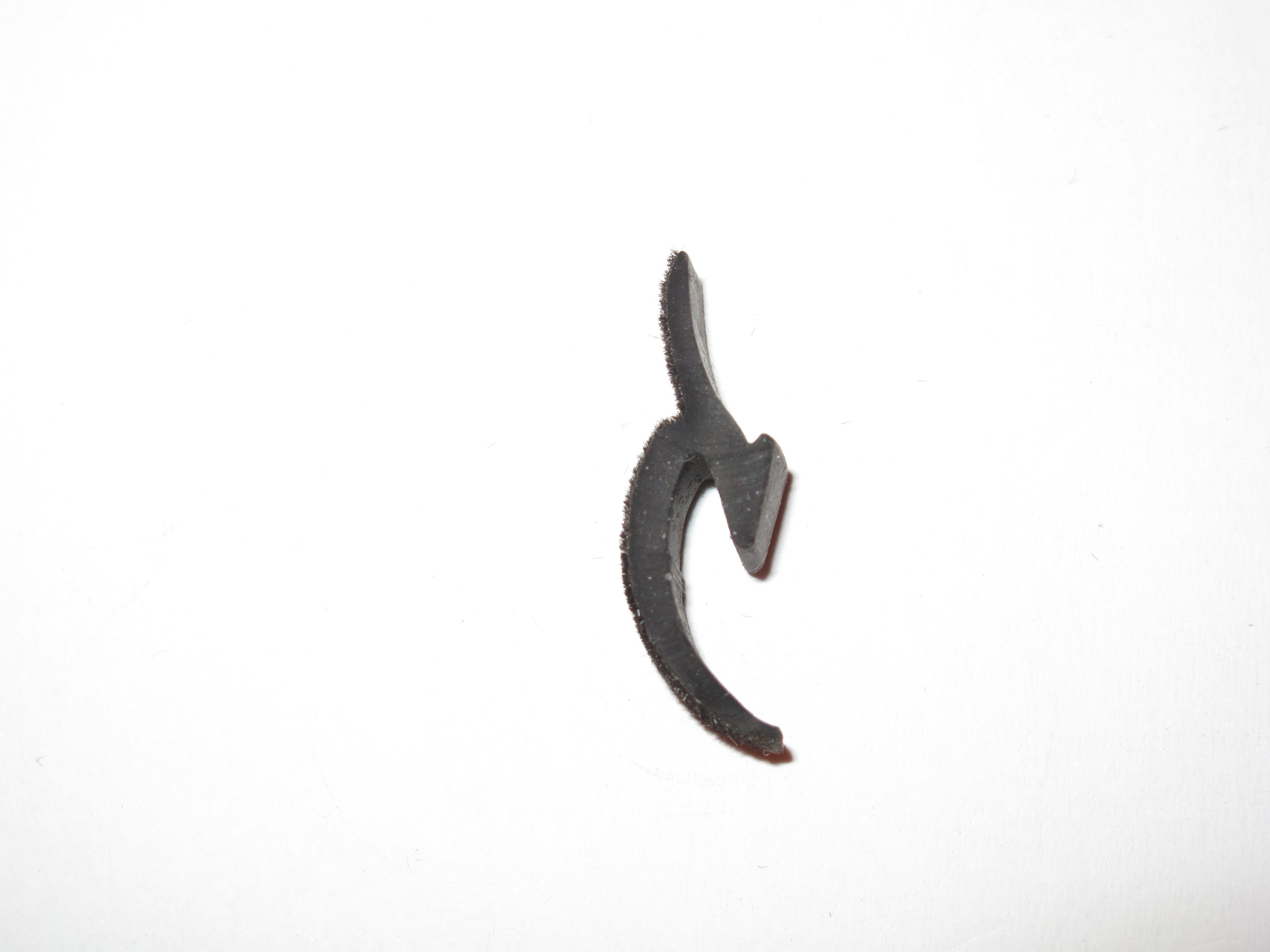

Profile:


Rubber side to beading


Velvet Side to glass


IMG_1312 - Copy.JPG (152.43 KiB) Viewed 2852 times

[DevilDog]

Perfect....email sent to SNG.
Thanks so much,
